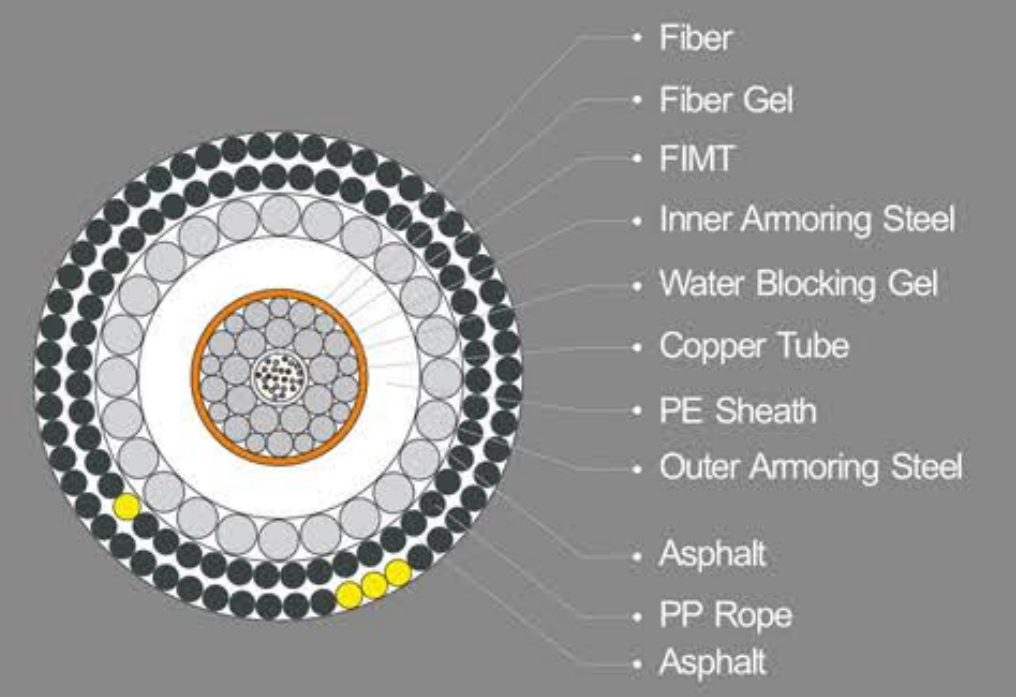

Structure
VOUC-1 SA
Fiber
G652D or G654
Fiber count
1-24 cores
Inner Armor
Phosphated Steel Wire(PSW)
Copper Tube
Thickness 0.4mm
PE
Nature Color HDPE
Outer Amor
Galvanised Steel Wire (GSW)
Outer Sheath
PP Rope
Features
The Fiber In Metal Tube (FIMT) provides effective protection against water ingress, mechanical & external forces and prevents hydrogen induced loss.
The inner armor consists of two layers of high strength steel wires surrounded by compound.
The copper conductor can be used to apply an electrical tone for cable tracking, depth of burial measurement and fault location.
The LW cable core can be armoured with single or double layers of GSW to give the cable increased tensile strength, excellent abrasion protection and enhanced crush and impact resistance.
Asphalt is added onto the armor, rope and sheath.
Applications
Suitable for large capacity optical transmission systems with maximum 2000 meters water depth.
Technical Specification
Type
VOUC-1 SA
Nominal OD(mm)
26.2
Nominal Weight (kg/km)
In air
1443
In water
940
CBL(KN)
190
NTTS(KN)
150
NOTS(KN)
100
NPTS(KN)
75
No Load Min Bend Radius(m)
1.0
Crush(KN)
35
Impact(N.m)
250
Operating Temp.(°C)
-10 to +40
Storage Temp.(°C)
-30 to +60
DC Resistance(Q/km)
<1.5
The min bend radius can be adjusted depending on the time duration over which the cable bend is sustained.
